JST (Japan Solderless Terminal) connectors are widely used in electronic devices for their reliability and compact design. Understanding the various JST connector sizes is crucial for selecting the right one for your project. This article delves into the different sizes, their applications, and key considerations when choosing a JST connector.
What Are JST Connectors?
JST connectors are electrical connectors manufactured by JST Mfg. Co., Ltd. They are known for their versatility, small size, and ease of use in a variety of electronic applications. These connectors are commonly used in consumer electronics, automotive, and industrial equipment due to their secure and reliable connections.

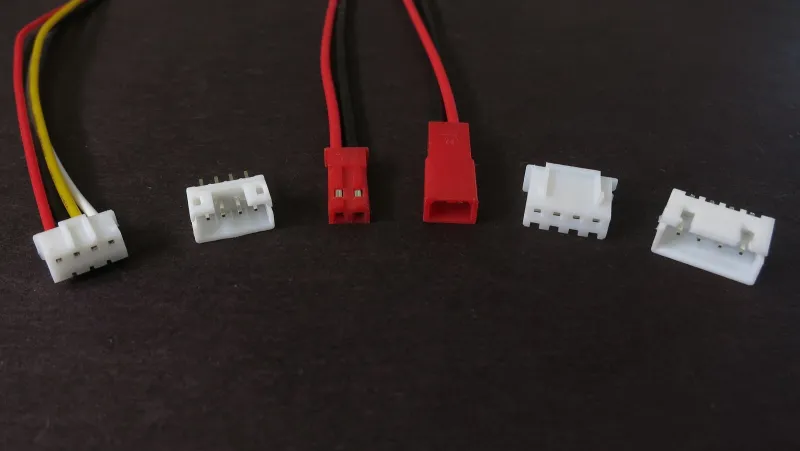

Popular JST Connector Series
JST connectors come in several series, each designed for specific applications. Some of the most popular series include:
- PH Series: Known for its compact size and 2.0mm pitch, the PH series is widely used in compact devices such as drones and small electronic gadgets.
- XH Series: With a 2.5mm pitch, the XH series is a bit larger than the PH series and is commonly found in home appliances and automotive applications.
- SH Series: Featuring a 1.0mm pitch, the SH series is ideal for space-constrained applications such as smartphones and wearable devices.
- ZH Series: The ZH series, with a 1.5mm pitch, offers a balance between size and power handling, making it suitable for various industrial and consumer applications.
Detailed Look at JST Connector Sizes
Understanding the size specifications of JST connectors is vital for ensuring compatibility and optimal performance in your projects. Here’s a closer look at some key dimensions:
- Pitch Size
- PH Series (2.0mm): The pitch size of 2.0mm makes the PH series suitable for medium-density connections.
- XH Series (2.5mm): The slightly larger 2.5mm pitch allows for higher current capacity and is often used in power supply connections.
- SH Series (1.0mm): The smallest pitch size in the common JST connectors, ideal for tight spaces.
- ZH Series (1.5mm): A mid-range pitch size that balances space efficiency and current handling capabilities.
- Current Rating
- PH Series: Typically supports up to 2A, making it suitable for low to medium power applications.
- XH Series: Can handle up to 3A, which is appropriate for higher power requirements.
- SH Series: Designed for low-power applications with a maximum current rating of around 1A.
- ZH Series: Supports up to 2A, fitting various medium-power applications.
- Voltage Rating
- PH Series: Up to 100V.
- XH Series: Up to 250V.
- SH Series: Up to 50V.
- ZH Series: Up to 50V.
Choosing the Right JST Connector Size
Selecting the appropriate JST connector size depends on several factors:
- Application Requirements
- Space Constraints: For devices with limited space, such as smartphones or wearables, the SH or ZH series would be ideal.
- Power Needs: For higher power requirements, consider the XH series with its higher current rating.
- Environmental Conditions
- Temperature and Humidity: Ensure the connector can withstand the environmental conditions of your application. JST connectors generally offer good resistance to varying conditions.
- Ease of Assembly
- Consider the ease of mating and unmating the connectors. Some series offer more user-friendly designs for frequent assembly and disassembly.
Common Applications of JST Connectors
JST connectors are versatile and find applications in numerous fields:
- Consumer Electronics: Used in laptops, cameras, and smartphones due to their compact size and reliability.
- Automotive: Commonly used in car audio systems, navigation systems, and lighting.
- Industrial Equipment: Employed in machinery for reliable power and data connections.
- Drones and Robotics: Preferred for their lightweight and secure connections in high-vibration environments.
Conclusion
Understanding JST connector sizes is essential for selecting the right connector for your project. By considering factors such as pitch size, current and voltage ratings, and application requirements, you can ensure a reliable and efficient connection. Whether you’re working on a small electronic device or a larger industrial project, there is a JST connector size that fits your needs perfectly.
